ODF Strip Pouch Packing Machine

Short Description:

The strip pouch packing machine is a pharmaceutical packaging machine mainly used for packaging small flat items such as oral dissolvable films, oral thin films and adhesive bandages. It is capable of offering pharmaceutical pouches with high barrier properties to protect products from moisture, light and contamination, as well as features of lightweight, easy-to-open and enhanced sealing performance. Besides, pouch style is designable.

Send email to us

Product Detail

Product Tags

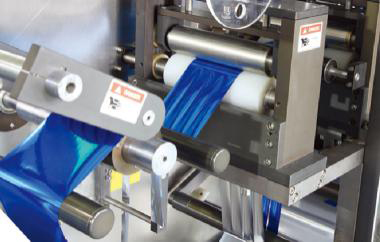

1-2-3-odf-strip-pouch-packing-machine_02

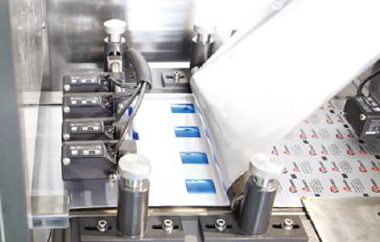

1-2-3-odf-strip-pouch-packing-machine_03

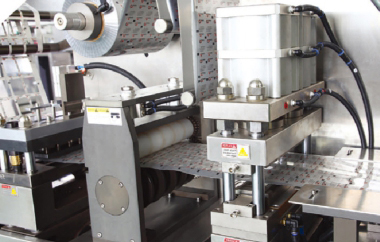

1-2-3-odf-strip-pouch-packing-machine_04

Technical Specifications

Max. Cutting Speed (standard 45×70×0.1mm)		Alu/Alu 5-40times/min
Packaging Film Width		200-260 mm
Film Web Width		100-140 mm
Heating Power (for heat sealing)		1.5KW
Power Supply		Three-phase five-wire 380V 50/60HZ 5.8KW
Motor Power		1.5KW
Air Pump Flow Volume		≥0.40m3/min
Packaging Material	Heat-sealing Composite Film Thickness (general)	0.03-0.05mm
Machine Dimension (L×W×H)		3500X1150X1900mm
Packaging Dimension (L×W×H)		3680X1143X2170mm
Machine Weight		2400Kg
